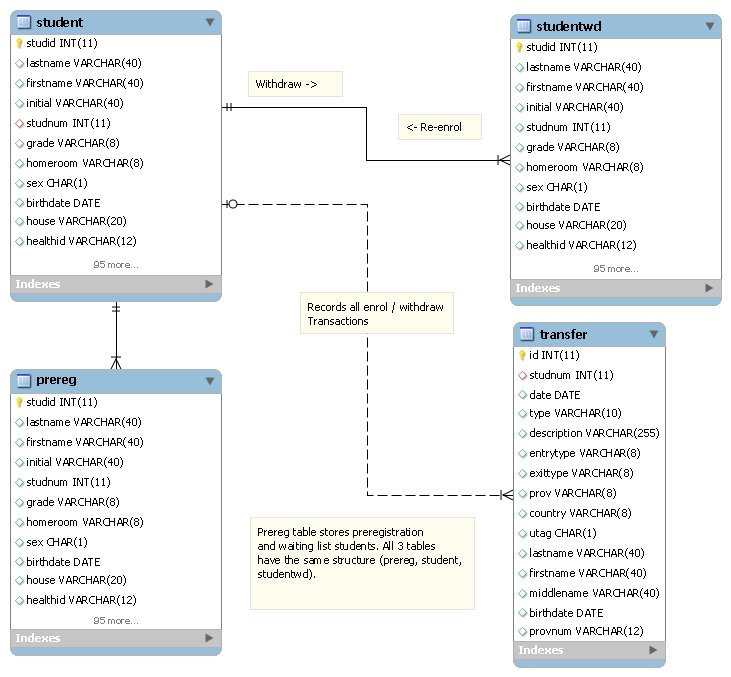

The main demographics information is stored in several student tables:
The student and studentwd tables are the tables that hold
student information and are identical in structure. The studentwd
table holds withdrawn students. When the student withdraws, their
record is moved from the student to the studentwd table. In the event
of re-enrollment, the record is just moved back into the student
table. The studentall table is a virtual table that is the
joining of the two student tables. It is effectively a view but
in MySQL 4.x, this is called a merge table.
The studnum field uniquely identifies the student. Within a
school division blocks of student number are assigned to each school
to keep the student number (studnum) unique within the division. For
individual stand alone schools, this is not an issue. It starts a 100
by default.
The transfer table stores enrollment change information. Every
time a student enrolls or withdraws from the school, one record is
added to the table.

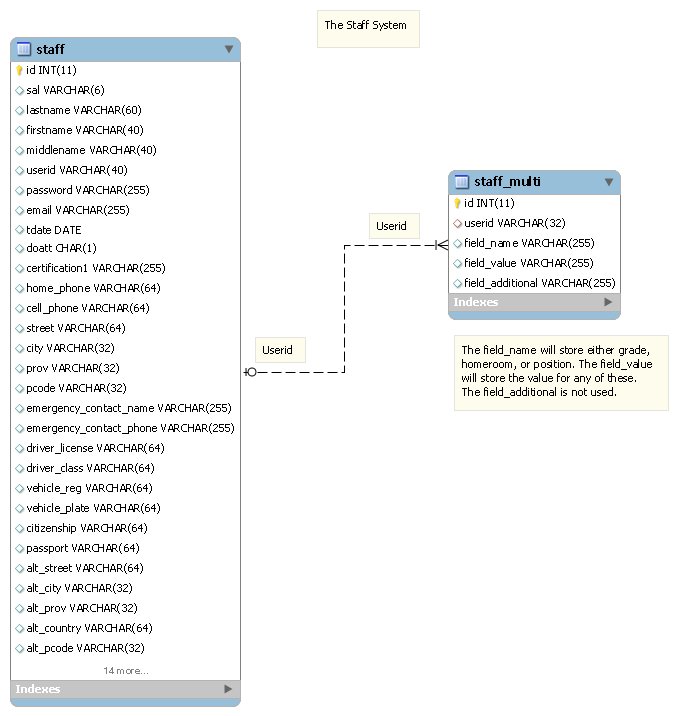

The staff table) is used to identify the teachers, TA/EA's
(teacher aides or educational assistants), and other teaching staff
members. Each person is uniquely identified by their userid
field. Each person should have this field entered. The homeroom
field will match the homeroom field in the student records. The doatt (Do Attendance) field indicates which teachers do attendance
(and are tracked for entry of daily attendance). The certif
field holds the teaching certification number for use with the
Saskatchewan SDS system. (or other provincial or state based numbering
system).
The main administration site has the following scripts in cgi:
- emailgroup.pl, emailgroupSM.pl - email messages to groups
of parents and/or students. The SM version uses the Sendmail interface
if you have an internal email server.
- labels.pl - label printing script with a variety of
formats and layouts. Also runs from teacher site.
- rptbillet.pl - report on locations where children stay in
the result of bad weather and other situations where they cannot be
transported home.
- rptbirthday.pl - birthday report with a variety of
options. Replaces the previous 2 separte reports.
- rptcustomclasslist.pl - A highly customizable report to
print student lists for various types of recording. Choose between
grade or homeroom, column widths, etc.
- rptcustomstafflist.pl - A similar report with many output
options for printing staff lists.
- rptdemoconf.pl - Demographic confirmation report. Based
on a template. It is normally printed to be sent home and signed by
parents to confirm student information.
- rptenrol.pl - student enrollment report for any
particular date. (by reading current enrollment and transfer table
changes)
- rptenrolmon.pl - monthly enrollment change report with
breakdowns by ethnic categories.
- rptethnic.pl - report ethnic numbers by grade.
- rptfamily.pl - family grouping report based on phone
number. Will be replaced by a better solution when demographics system
is redesigned.
- rpthouseleague.pl - house league (intramural teams)
listing of student membership by homeroom.
- rptmedical.pl - a medical report that will do text
searches in the medical field. New upcoming versions will have better
reporting along with a new medical subsystem.
- rptphone.pl - a simple web based form to list student
phoning information.
- rptreligion.pl - student report showing student religion
by grade.
- rptrelsacra.pl - a religious sacraments report showing
religion fields for students.
- rptreserve.pl - a report listing students and their home
reserve if field is filled in.
- rptstudrost.pl - a pdf report listing complete student
demographic information (one or two records per page). It is based on
a template and is extensible.
- rptsumage.pl - a report that gives age and gender
breakdowns in the classes and grades.
- rptsumenrol.pl - summary school enrollments by grade.
- rptsumethnic.pl - report on summary ethnic origins of students by grade.
- rptsumrel.pl - a summary religion report by grade.
- rpttrack.pl - a track report breaking students down by
age group based on an entered aging date (ie. August 30, November 1,
etc.)
- rpttransmon.pl - a monthly enrollment change report
(transfers are enrollment changes and are stored in the transfer
table).
- rptyoungest.pl - a report listing those students who are
indicated to be the youngest in their family. This is useful since
letters home to parents are frequently sent with the youngest.
- staffpopmulti.pl - temporary script to convert the staff table
to the new multi-table format (version 4.75) . To be Removed in later versions.
- studed.pl - a script that allows editing of student
demographic information. It uses a template from the templates
directory (and is customizable as a result).
- studeled.pl - a report of all students in all student
tables - current, withdrawn or preregistered/waiting list. It then
links to studed.pl to allow editing of student information. It doesn't
allow deletion of students since this requires a withdrawal.
- studsearch.pl - a student search function to search
demographic records by number, name or initials. I like initials the
best.
- studview.pl - a templated full demographic record view of
student demographic information.
- templatecreate.pl - a template creator for the student
roster report (rptstudrost.pl)
- viewlang.pl - language profiency reports
When students withdraw, they are moved from one table (student) to
another (studentwd) When they re-enrol, they are moved back. A
transfer table keeps track of all of these movements and all new
enrollments, etc.
The entry system (enrol/withdraw) has the following scripts in cgi/entry:
- globenrol.pl - called by student enrollment script
(sentry0.pl). Copy demographics data, etc. from other school into
local records.
- globview.pl - show withdrawn students in entire division.
- reenrol.pl - called by student enrollment script
(sentry0.pl). Move student from withdrawn table (studentwd) into
active student table (student).
- sentry0.pl, sentry1.pl, sentry2.pl - Student Enrollment
Script; sentry0.pl - describes direction of student record flow
(withdraw, enrol, re-enrol from withdrawn or global).
- transadd0.pl, transadd1.pl - Add a new transfer record; a
blind script not called from anywhere. It would need to be entered
from location bar in browser to run.
- transchk.pl - check transfer records for internal
consistency, etc. Many checks done.
- transdel.pl - Delete transfer records; called by transview.pl
- transed.pl - Edit transfer records; called by transview.pl
- transview.pl - View transfer records; called from main page.
- waitdel.pl - delete waiting list entry; called by waitview.pl
- waited.pl - edit waiting list entry; called by waitview.pl
- waitorder.pl - alter ordering of the waiting list; called by waitview.pl
- waitview.pl - view waiting list
- waitxfer.pl - place students onto the waiting list.
- withdraw.pl - withdraw a student from school. Move his/her
records to the withdrawn student table (studentwd). Called by the
starting student enrollment script (sentry0.pl).
The start/end of year area has the date management scripts but also
student reset scripts and permanent student deletion, password changes,
configuration viewer, etc. It has the following scripts in cgi/eoy:
- confview.pl - view all configuration files for the school.
- permdel.pl - permanent deletion of student data (except
values in transcript (course results) and transfer (enrol/withdraw)
tables, which are long term storage). This includes their demographics
record in studentwd (withdrawn student) table and also evaluation,
discpline, and attendance.
- pwdfix.pl - fix any passwords with trailing cr/lf
values. Not called anywhere; blind url. 2007 script.
- pwdupd.pl - update blank passwords. Out of date. Called
from start/end of year page. Uses old apg method...
- resetgrade.pl - reset all student grade fields.
- resethroom.pl - reset all student homeroom fields.
- resetselect.pl - reset any selected student field. Very useful.
- withdrawprom.pl - Withdrawn promoted students.

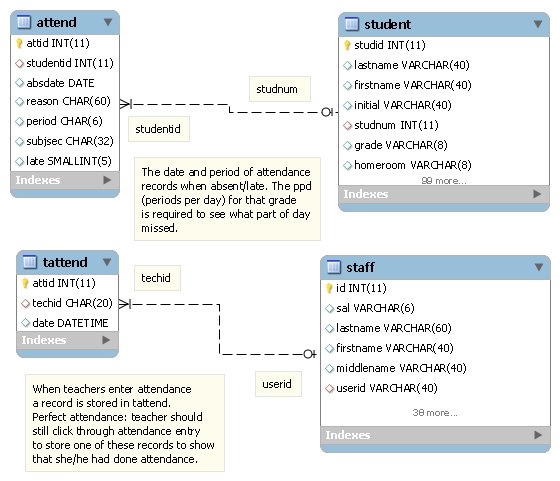

The Attendance system is stored in a couple of tables:
- The attend table stores student attendance. There is one
record for every period that a student misses. The student is
identified by the studentid (aka studnum fields in other
tables) field. This information is used to link together large numbers
of tables. The absdate (absent date) and period field
identify when the miss occurred. The reason and late
fields indicate the reasons for absence to help categorize the
records. The subjsec field identifies the subject / section
(subjsec) missed for subject based attendance. This field is
normally not used in elementary schools. The late field is not
used by any functions, yet. The id field (called attid in this
table; a design mistake) is used to uniquely identify each record to
allow them to be edited or deleted in the event of an entry
mistake. This id field is used in most other tables also, for the same
reasons.
- The tattend table is used to track teacher attendance
entry. Every time a teacher enters attendance on the teacher site, a
record is stored in this table. This will allow central office to
ensure that every teacher has entered his/her attendance (even if
perfect attendance) so that absences can be tallied, etc. This is
necessary since OA only tracks ``absences'', not ``presences''.
In many schools, this is not required.
The attendance system has the following scripts in cgi/attendance:
- attaddall.pl - Main attendance entry method for
secretaries. Will do all grades, by homeroom or subject.
- attcheck.pl - checks attendance records for duplicate
records, blank reasons and dates. It allows for fixing the errors
also.
- attdel.pl - delete attendance record. Linked via the
attdeled.pl which is a main menu script.
- attdeled.pl - display a list of attendance records, and
then allow them to be edited or deleted. (via the attdel or atted
scripts).
- atted.pl - edit attendance record. Linked via the
attdeled.pl script.
- attentrymd0.pl - multiple day (md) attendance
entry. Select weekly/biweekly, student groups, and periods.
- attentrymd1.pl - multiple day (md) attendance
entry. Reason selection.
- attentrymd2.pl - multiple day (md) attendance entry. This
stores the information in the attendance table (called attend).
- attethview.pl - view attendance by ethnic category. A
summary report.
- attpwrdel.pl - attendance power delete. Allows rapid
removal of attendance entered by mistake.
- attrsnreset.pl - reset the reason for an attendance
record. The displayed reasons are for a particular date.
- attscan.pl - a large script to scan for students with
attendance problems that will trigger discipline events. The settings
in etc/admin.conf control the triggering of particular discipline
events based on accumulated attendance points. A particular attendance
event is assigned a particular point value. It will automatically add
those discipline events and also generate PDF form letters for mailing
home. The form letters template is in the forms directory.
- attscanview.pl - related to the attscan script above. It
is passed a subject-section or a student number and will display the
attendance record for those students along with their current
attendance points values. A certain number of points will
generate a discpline event.
- attview.pl - View attendance records. View by student or class.
- chkattend.pl - A script to check for teacher attendance
entry (ie. that they've done their attendance).
- chkstuatt.pl - Check student attendance for those
exceeding a certain number of days (input by user). Weakness is that
it relies on embedded 'Absent Unexcused'.
- rptattdaily.pl - Daily attendance report with full stats at end, etc.
- rptattmonth.pl - Monthly attendance report.
- rptattperf.pl - Perfect attendance report. Find all
students that have perfect attendance. Settings in the admin.conf file
can allow certain attendance records to be ignored (ie. lates)
depending on school policy.
- rptattphone.pl - A report to display phoning information
for students absent/late for the day. Normally used by attendance
officers, etc.
- rptattprof.pl - Attendance Profiles Report. A report to
do simple attendance calculations and reports on all attendnace
records. This is normally used by schools that are not yet using
report cards (which contain attendance information also).
- rptattstuday.pl - Daily attendance report
- rptattstudsubj.pl - A cumulative report for the current
term for each student by subjects.
- rptattsubj.pl - Attendance report by subject.
- rptattyear.pl - Yearly attendance report
- rptcohort.pl - Analysis of cohorts in terms of students at start of
year compared to the same group at the end of the year.

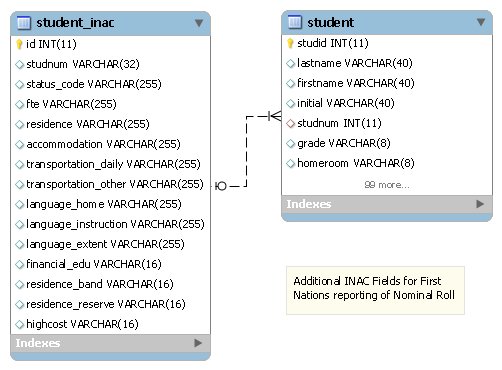

- rptinac.pl - INAC (Indian Northern Affairs Canada)
attendance report. Basically a monthly attendance report.

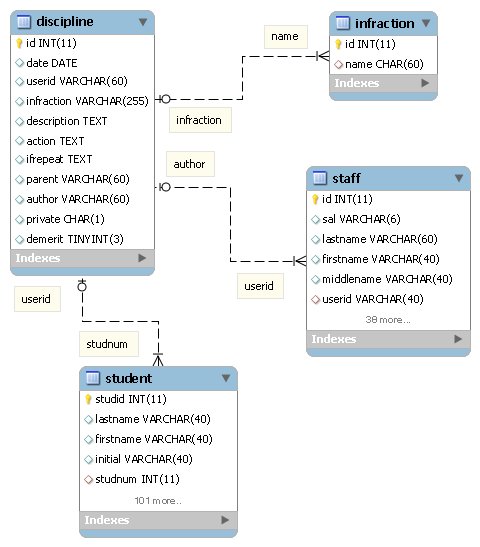

The discipline system uses two tables:
- The infraction table which stores the descriptive text for
the different kinds of discipline events in the school.
- The discipline table stores the discipline infractions for
the students. There is one record for each infraction. The userid field is the student number field (studnum). The author field is the userid for a staff member. The private
field is used to mark records only visible from the admin site, not
the teacher site. The parent field indicates the nature of
parental notification about the event. The action field
indicates any action take due to the event, and the repeat field
is the nature of the consequence in the event of a repeat of this
behavior.
The discipline system has the following scripts in cgi/discipline:
- catadd0.pl,catadd1 - adds new infraction categories
- discadd0.pl,discadd1.pl, discadd2.pl - Scripts to add discipline events.
- discbulkdel0.pl, discbulkdel1.pl - delete records by date and/or student.
- discdatedel.pl - delete records by date.
- discdel0.pl, discdel1.pl - record delete
- discdeled.pl - master discipline edit/delete script; calls other scripts
- disced0.pl, disced1.pl - Edit Discipline records
- discvw.pl - View Discipline records
- infdel0.pl - Lower level infraction delete; called by infdeled.pl
- infdeled.pl - Delete Infraction Categories
- infvw.pl - View current infraction categories.
- reportsum.pl - School Summary Discipline report
- rptdiscstat.pl - Summary report with statistics.
- rptstud.pl - Student Discipline report
This system is used to track student fees owing, and notify parents of amounts owing.

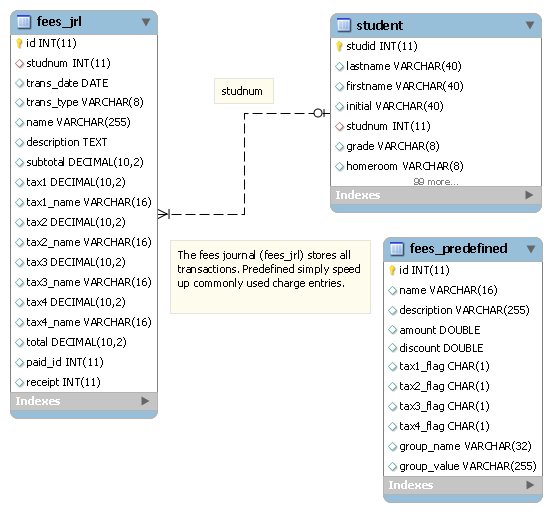

There are two tables used to implement this system:
- The fees_jrl is the main fees journal table and holds all transactions.
- id int(11) not null auto_increment - the normal id field
to identify this record.
- studnum int(11) default null - the student number
field. This field identifies the student that this transaction applies
to. This links to the student number (studnum) field in the student table.
- trans_date date default null - the transaction
date. Scripts allow the user to change the date (if doing entries
after the fact). They are not forced to make this todays date.
- trans_type varchar(8) default null - the transaction
type. There are currently three possible values here:
- chg - for a normal charge transaction where a student is
charged a particular fee.
- pay - a payment for a single charge or several charges.
- roa - received on account for a payment where there is an
overpayment or there is not sufficient payment to pay a change
transaction completely.
There is more below on the nature of these transactions.
- name varchar(255) default null - a short name describing
this transaction such as School Uniforms, Book Fees.
- description text - a full unlimited length text
description of the transaction (normally only possibly required for
the charge transactions).
- subtotal decimal(10,2) default null - the value of the
transaction before taxes. It is left null for payments and received on
account (roa) transactions since there are no tax values.
- tax1 decimal(10,2) default null - the value of a
particular tax. These tax names and their rates are set in the
fees.conf configuration value.
- tax1_name varchar(16) default null - the name of the tax
as set in the fees.conf configuration file.
- tax2 decimal(10,2) default null,
tax2_name varchar(16) default null,
tax3 decimal(10,2) default null,
tax3_name varchar(16) default null,
tax4 decimal(10,2) default null,
tax4_name varchar(16) default null - same as the tax 1
values. OA has room for up to 4 taxes which seems to be the largest
worst case scenario.
- total decimal(10,2) default null - the total value of the
transaction including all taxes (the sum of the subtotal and tax1 to
tax4 if present). For pay and roa transactions there are no taxes and
only this field is used to store the value of the transaction. The
subtotal field is left null in these transactions.
- paid_id int(11) default null - this field is filled in
for charge (chg) transactions with the record id of the matching
payment (pay) transaction. When this field is null for a charge
transaction, this transaction is outstanding (ie. unpaid).
Payment transactions hold the receipt number (obtained from the
receiptnumber file in the etc configuration area) in this field.
ROA (Received on Account) transactions are generated when the value of
the payment is less than the value of the charge transactions. The
transaction type (trans_type) of the record is roa. These
records have the receipt id value in the description field and paid_id
remains NULL until it is included with a payment and linked to a
particular charge or charges.
- The fees_predefined table is the table that stores
predefined charges. It includes the following fields:
- id int(11) not null auto_increment - record id for this record.
- name varchar(16) default null - the short name of the transaction.
- description varchar(255) default null - a longer description for the transaction.
- amount double default null - the amount of the transaction.
- discount double default null - a discount rate (in
percent) that could apply to this charge. This is currently unused in
any script.
- tax1_flag char(1) default null,
tax2_flag char(1) default null,
tax3_flag char(1) default null,
tax4_flag char(1) default null - flags to indicate that this
tax applies to this charge. A non-null value indicates true (normally
a one (1) is stored).
- group_name varchar(32) default null - the name of the
group that these charges apply to. This may be Grade or
homeroom.
- group_value varchar(255) default null - the value of the
grouping. If for a grade this might be a 10 or if a homeroom is might
be a value like 2RR.
The last two fields indicate to which students this charge would apply
(although this can be changed when applying the charge).
All of these scripts are located in the cgi/fees directory and are
linked via the fees.html page on the main menu. They include:
- Assess Fees (assessfees.pl) - is used to charge fees to
particular students or student groups. The fees can either be
predefined fees or created from scratch. The fees are then applied to
particular student groups.
- View Assess Fees (assessview.pl) - provides a simple view
of all transactions in the fees_jrl table. The script just does a
dump of all records.
- Delete Fees (assessdeled.pl) - delete assessed fees
(ie. charges) that are not yet paid.
- Change Paid Status (changepaid.pl) - allows lunch fees to
be marked as paid. An interim script only until summary lunch values
can be posted into the fees system.
- Export Monthly Summary (exportmonthjrl.pl) - export
summary transactions for a month into an external accounting system
(csv format).
- Print Outstanding Invoices (invoice.pl) - used to print
invoices for parents of amounts owing, payments made, etc. Only prints
outstanding invoices. needs dimension updating for pdf generation.
- Payments (payment.pl) - add payments and print receipts.
- Add Predefined Fees (predefadd.pl) - add predefined fees.
- View Predefined Fees (predefview.pl) - view all predefined
fees, the amounts, and who they apply to.
- Print Receipts (receipt.pl) - print receipts (also called
directly from payments).
- View Outstanding Fees (rptoutstanding.pl) - from 'View
Outstanding Fees' button; report any outstanding charges, all
children, same family (HTML output)
- transactview.pl - show transactions for a certain student
number.
- rptpaid.pl - same as rptoutstanding. Script is
incomplete. Not linked to main page.
- invoiceview.pl - no longer used.(html output)

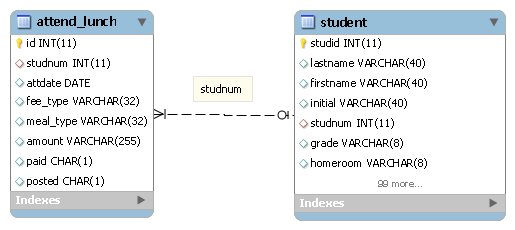

The lunch system has the following scripts (also located in cgi/fees):
- changepaid.pl - change value of the paid field (ie. indicate paid).
- lunchadd.pl - add lunch entries for students or student
groups (to indicate that they had a particular meal) for a particular
date and also indicate whether paid, etc.
- lunchrpt.pl - a lunch attendance form report; prints a
blank lunch entry form for use by lunch room staff.
- lunchrptdue.pl - a lunch report show fees owing; not used.
- lunchsearch.pl - name based lunch search with html
output. Shows all lunch records (paid or unpaid).
- lunchview.pl - view lunch records, including ability to
delete.

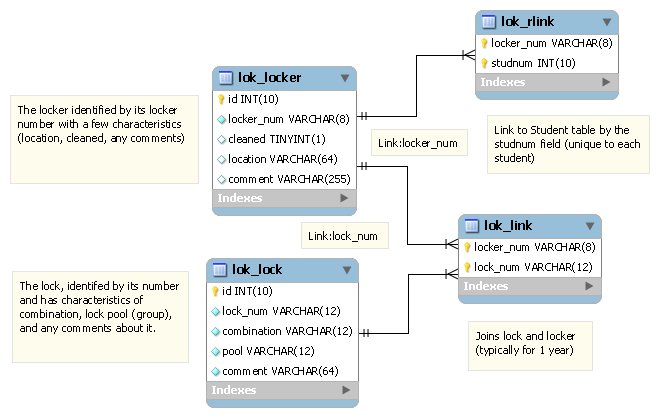

A system for managing locks and lockers.
The 12 scripts (located in /cgi/locker) include:
- lockeradd.pl - add lockers to the system.
- lockerassign.pl - assign lockers to students.
- lockerunassg.pl - unassign lockers.
- lockeredit.pl - edit locker values.
- lockersearch.pl - search for lockers based on criteria.
- lockerview.pl - view locker values.
- rptlocker.pl - full locker report.
- lock_upload.pl - upload locks into the system (from csv file).
- lockadd.pl - add locks into the system.
- lockassign.pl - assign locks to lockers.
- lockedit.pl - edit lock values.
- lockview.pl - view lock values.
These are called from the locker area of the fees page.

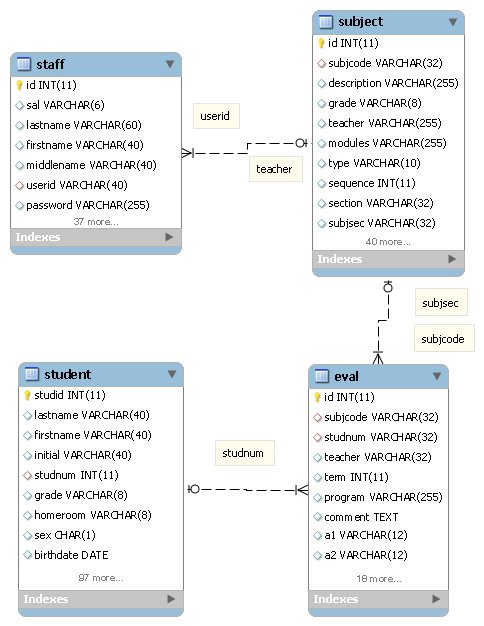

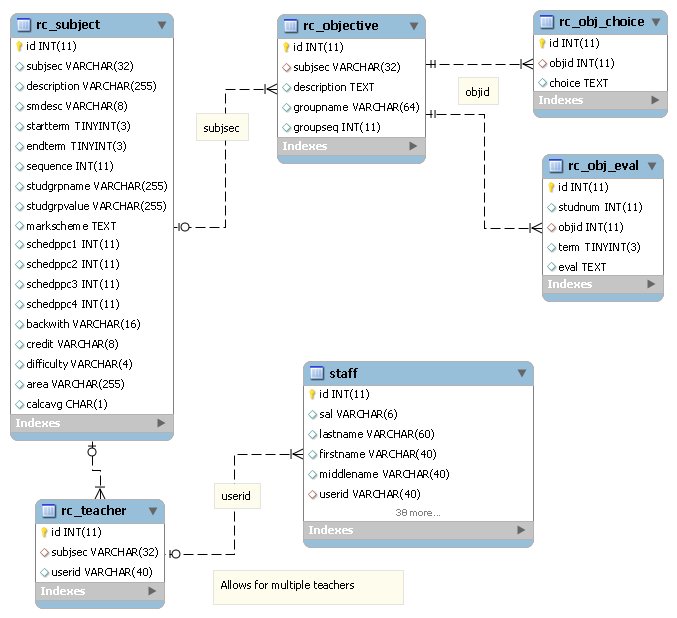

The Report Card System makes use of a couple of tables:
- The subject table - this table stores information about a
single course in each record. It lists the course subject, who teaches
it, the course code and section number and the starting and ending
reporting periods. Each subject-section is identified by a unique
subject-section code (called subjsec) which is the subject code,
a hyphen, and a section code (ie. 8415-1)
- The eval table - (or evaluation table) stores the teacher
evaluations for a student in a particular class and section. When a
student is enrolled, one record is entered for each reporting period
in that class and section. For example, if there are 4 reporting
periods (terms) for a particular subject/section, then 4 records are
added for each student enrolled in that subject/section.
This table stores not only the evaluation results but also the subject
enrollment. When a student has records here, he/she is enrolled.

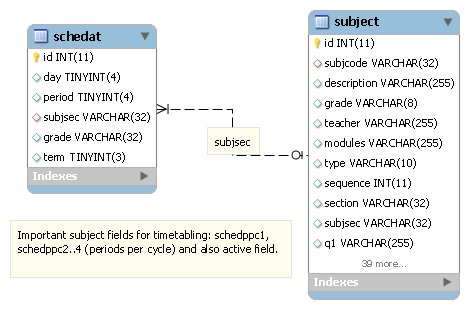

The subject table has the following fields:
- The teacher is the userid and name of the teacher. This
course will be listed under the teacher's name on the staff mark entry
pages while entering evaluations. The name part will be removed in the
future, since this is a design flaw. It will exactly match the userid
from the staff table in the future.
- The paa modules are course ``sub-components'' listed by
Saskatchewan Learning. They only have meaning in Saskatchewan, and
information from this field is not currently used by other parts of
the admin system.
- The type is an attempt to classify subjects on the basis
of the kinds of entry values needed for evaluation. However, as of
2.00, you may leave this field blank.
- The sequence is a number that controls the order with
which this subject prints on a report card. If, for example, you
wanted particular core subjects listed first, they would have lower
numbers. It is suggested that one go up by tens (10,20,30) when
entering sequence numbers to simplify the process of re-ordering
subjects or adding in new ones.
- The web visible field controls whether this subject could be
visible on the web to authorized individuals (ie. Parents). This would,
of course, mean only their own child and not all students taking the
class. This is used by the administration software as of OA 1.50.
- The faculty field lists which faculty offers this
subject. It will help classify subjects for academic
requirements. Currently unused.
- The location field lists where this subject/section is
offered. Currently unused, although this will change in the 2.x series.
- The mark scheme is a text block that describes the
evaluation process used by this subject. Currently unused.
- The 20 objectives fields describe different particular
objectives, etc. that a teacher is using to evaluate his/her
course. These will be printed on the report cards (normally on the
administrative site) and are also present when entering student
evaluations (on the teacher site). Normally the first objective field
is used for numeric results, and later ones, if used, are more
descriptive.
- The subject aliases are small numbers that uniquely
identify a subject/section and are used only for doing particular
types of subject based attendance.
The report card system has the following scripts in cgi/repcard:
- emptymarksview.pl - View students with missing mark
values. This is done before printing report cards so teachers may be
notified about missing values.
- enroladdall.pl - add subject enrollments (ie. enrol
students in subjects). This is the main script to do this.
- enrolstudview.pl - search for subject enrollments by student name, initials.
- enrolview.pl - view subject enrollment by student or subject.
- evaldel.pl - delete subject enrollments; called by evaldeled.pl
- evaldeled.pl - edit/delete subject enrollments.
- evaldelstud.pl - delete enrollments by student
- evaled.pl - edit subject enrollment values (single
record); called by evaldeled.pl
- evalmove.pl - move subject enrollments from one homeroom
to another; must be same grade and same subjects.
- evalpwrdel.pl - power delete subject enrollments; called by evaldeled.pl
- evalpwrdel_rc.pl - power delete alternate report card (PK report card)
- rptemptysubjlist.pl - pdf report of student without any
subject enrollments. Older code; limited usage, imo.
- rptenrolgrade.pl - very simple older script; shows
enrollment and each term record.
- rptenrolsumm.pl - from 'Enrollment Summary - Web'
button. Shows subjects enrolled and the number of students. Also shows
those subjects with no enrollment.
- rptrank.pl - 'rank students by gpa' button. Select by
grade/homeroom and school year. html output.
- rptrepcard.pl - main report card and alternate report card
printing script. Many options on the start page; it also pulls values
from the repcard.conf file.
- rptstudfinalmarks.pl - 'Year End - Student Summary Marks'
button. Needs updating to latest configuration values for pdf
output. Start page has student selection, sort order, paper size,
etc. Title is 'Cumulative Mark Report', and show school year, printing
date, and then all the final marks.
- rptsummark0.pl, rptsummark1.pl - 'View Subject Marks'
button; first script selects by grade, teacher, or subjects, and
second generates the report (pdf format) with slanted objectives, etc.
- rptsummarkend.pl - 'Year End - Final Evaluation Report'
button; select by grade or homeroom (and paper size). Prints all
subjects and all students on a single page with only the first
objective (ie. the mark value). Should be updated for pdf setting values.
- rptsummarkstud.pl - 'Student Term Marks Report'
button. Title called 'Student Summary Marks'. Needs PDF update and
title fix. Quite simple report.
- rptsummxtab.pl - 'View Crosstab of Subject Marks' button;
title still called 'Summary Mark Report'. Has a start page for
values. Can select by grade, homeroom or subject. Then papersize and
term (blank=current). Has a report with slanted objectives and
includes all objectives for all subjects for all students. This is
normally landscape orientation.
- saliasdel.pl - Not used or linked from html pages. Student Alias delete.
- saliasupd.pl - Not used or linked from html pages. Student Alias update.
- saliasview.pl - Not used or linked from html pages. Student Alias view.
- subjadd.pl - add new subjects.
- subjdel.pl - delete subjects; called by subjdeled.pl.
- subjdeled.pl - edit/delete subjects.
- subjed.pl - edit subjects; called by subjdeled.pl.
- subjview.pl - view subjects; provides links to edit subject.
- rptsubjteach.pl - title: 'Teacher Subject Report'. HTML
report showing teacher loads.
- termed.pl - Edit current term. This controls mark entry on
the teacher site and posting from the gradebook, as well. A zero value
disables. It also changes based on the multitrack variable, since
there may be different values of term for different grade levels.

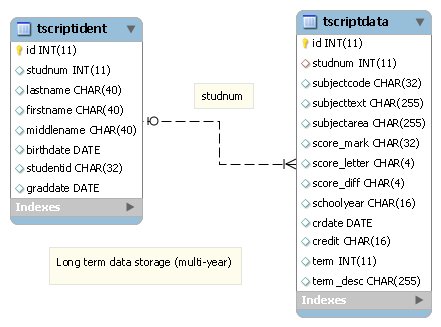

The transcript system is designed to store student course information
over multi-year time periods while the student is enrolled in school
(and even after he/she has graduated or withdrawn/moved).
It consists of 2 tables:
- tscriptident - this table stores the basic identity
information about the student. There is only one of these records for
each student.
It includes:
- id int(11) not null auto_increment - normal id field to
identify the record.
- studnum int(11) default null - the student number used to
link this record to all of his/her course information records stored
in the other table (tscriptdata). This field must be unique to this
student since this is the most important number identifying the
student in OA. This is the same field as found in all demographic,
attendance, report card information, etc.
- lastname char(40) default null - family name of student.
- firstname char(40) default null - given name.
- middlename char(40) default null - other name information.
- birthdate date default null - birthdate, another key
identifying piece of information.
- studentid char(32) default null - another identifying
number; characteristic of the educational jurisdiction. In
Saskatchewan, this would be the provincial student number. The field
that is exported from the student demographics table (student) and
placed in this field is a configured item found in the transcript.conf
configuration file.
Other fields could be easily added to this table to store other
information that is required about the student over the longer term
(ie. perhaps other important number such as SSN (Social Security
Number), etc.
- tscriptdata - This table stores the actual course
information. This information is read (along with the identity
information) to create the student transcripts.
- id int(11) not null auto_increment - record identifier.
- studnum int(11) default null - links to the student
identity table (tscriptident) in a one to many relationship. (One
student - Many Courses, possibly).
- subjectcode char(32) default null - the course code
assigned to this subject by the school. This is called the subjsec
(subject-section) code in the subject table and is the subjectcode in
the eval table. They are one and the same value. They contain a
subject code and a section code separated by a hyphen.
- subjecttext char(255) default null - description of the
subject (ie. Biology 12).
- subjectarea char(255) default null - the area (science,
math, etc.) of the course.
- score_mark char(32) default null - the student's mark.
- score_letter char(4) default null - the letter score for
this mark. The mapping between a particular mark value and it's
matching letter score is found in the transcript.conf file. They
letter grades are not stored in the eval table (the table that stores
the term results for each student in each course. The final term value
is assumed to be the final overall mark.
- score_diff char(4) default null - a difficulty value for
this course. This is used to calculate the grade points for this
course. The value is stored in the subject table for this course.
- schoolyear char(16) default null - the school year in
YYYY-YYYY format. (2007-2008)
- crdate date default null - the date of this record. This is
credit date; the date this credit was obtained. Currently, not much
use if made of this since the school year is more helpful.
- credit char(16) default null - the credit obtained in this
course. Obtained from the subject table record for this course.
- term int(11) default null - the term of this course. This
represents the term of the eval table record that was posted. Not all
that useful, except for record ordering of the transcript records
(along with the year).
- term_desc char(255) default null - the description of this
term... values are mapped from the transcript.conf so that they
describe the school's particular text for this period of time (since
terms are smaller than Semesters (2 terms = 1 semester) or Quads (2
terms per quad; 4 quads per school year).
There are only a few scripts (3 currently) required to implement this
system. As a result, they are all included in the cgi/repcard
directory along with the other report card scripts. The scripts
themselves should be read to understand their operation.
- The Transcript Post script (tscpost.pl) - this script
copies information from the current year's student evaluation (eval
table) into the transcript tables (tscriptdata, tscriptident). It adds
a transcript identity record if one doesn't already exist and then
adds data records for the subjects selected. It will skip any existing
records if they already exist. Existing records can be edited
directly.
- The Transcript Edit/Delete script (tscdeled.pl) -
this script allows transcript records to be edited and deleted in the
transcript data table. The student information table (tscriptident) is
not affected since these records may remain even if there are no
matching data records.
- The Transcript Report script (rpttranscript.pl) -
generates the actual PDF transcripts. It generates both an HTML output
as well as the PDF output required.
The transcript system has the following scripts:
- rpttranscript.pl - print Transcripts (pdf/html format)
- tscadd.pl - Add transcript entries.
- tscdeled.pl - Edit/Delete transcript entries
- tscpost.pl - Post evaluation entries (ie. report card
marks) into the transcript system.
The pre Kindergarten report card has the following scripts in cgi/repcard_pk:
- pkenroladd.pl - enrol students in the PK subjects.
- pkenrolview.pl - view subject enrollment in PK subjects.
- pkobjadd.pl - add objectives to a PK subject.
- pkobjview.pl - view per PK subject objectives, delete
objectives, and add or edit or delete choices for those objectives.
- pksubjadd.pl - add new PK Subjects
- pksubjdeled.pl - edit/delete PK Subjects
- pksubjed.pl - lower level PK subject edit; called by
pksubjdeled.pl.
The schedule system has the following scripts in cgi/schedule:
- exportfetdata.pl - export xml data to the FET (Free
Evolutionary Timetabler) timetable software.
- importfetdata.pl - import xml data from FET.
- rptschedule.pl -
- schedadd.pl - add timetable elements.
- schedel.pl - delete timetable elements.
- schedit.pl - edit timetables elements.
- schedview.pl - view student timetables (by grade)
- tchschedview.pl - view teacher timetable.
Subject scheduling scripts that edit data for FET timetabler use.
- subjsched.pl - Add/Edit Subject Periods per cycle and
active or not. Used by timetabler to generate timetable based on
constraints.
- subjschview.pl - View Subject Schedule entries. PPC and
Active;
Scripts for this system are located in /cgi/fees also.
- transdaily.pl - Daily transportation report, includes
attendance.
- transed.pl - Edit transportation type (Bus, etc)
- transedall.pl - Edit all transportation values.
- transrpt.pl - Transportation report (pdf) - not yet
templated.
- transview.pl - View Transportation fields.
- wheresnelson.pl - based on the children's book 'Where's
Miss Nelson', this script gives teacher location based on their
entered timetable.
- whereswaldo.pl - similarly, from the 'Where's Waldo'
children book, this gives student location based on timetable.
The export system has the following scripts in cgi/export:
- backupall.pl - full database backup for download.
- expaddress.pl - export student and address information.
- expcumfldr.pl - export fields needed by the cumulative folder.
- expcustom.pl - export any selected fields.
- expphoto.pl - export information for school pictures.
- exprepcard.pl - export report card data.
- expstaff.pl - export staff data.
- expstud.pl - export full student data.
- expstudent.pl - export selected student data.
- exptransfer.pl - export transfer data (enrol/withdraw)
- expuserpwd.pl - export users and passwords.
- expwdstud.pl - export withdrawn students.
- importCSV.pl - import students.
- importstaff.pl - import staff.
The image management system has the following scripts in cgi/image:
- associate.pl - this script will change the filename into a
student number value (since the correct name is studentnumber.jpg
(ie. 12345.jpg). It also updates the student pic field.
- imageadd.pl - upload image files (even in zip or tgz
archives), extract, and resize into working directory for
pictures. They should then be 'associated' to rename to correct
student number value.
- imageview.pl - view and delete student images.
- rptpicstudent1.pl - new report for student pictures. pdf
output suitable for color laser printing.
- studpicview.pl - another student picture viewer. Different
options.
- working - working folder for image scripts
The Preregistration System is used when a school wants to:
- Register kindergarten(K) and prekindergarten(PK) students before
the end of the current school year.
- Want to do homeroom and grade assignments before school end.

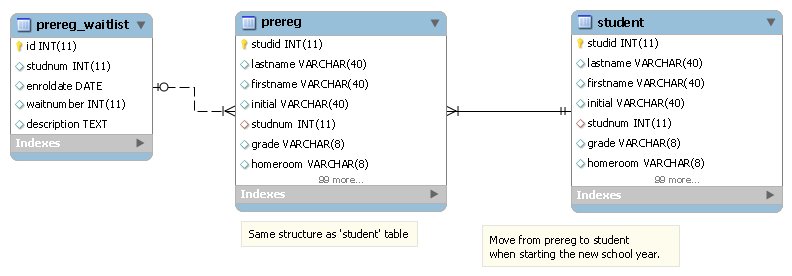

It uses 3 tables:
- prereg - a clone of the student table. Preregistration entries
(ie. K, PK) are stored here and then added to the student table later.
- preset - updated values for homeroom and grade for students that
will be used to update the student table later.
- prestaff - clone of the teacher table. Stores new teaching
homeroom assignments, etc. for pre-registration reports. This is used
to replace the teacher table in the new year.
The preregistration system has the following scripts in cgi/prereg:
- asclass.pl - assign student homerooms (preregistration) in prereg.
- copybackstaff.pl - copy prereg staff tables back into
normal staff tables. Current staff values are removed.
- copystaff.pl - copy the staff ( staff, staff_multi) tables
into the prereg staff tables ( prereg_staff, prereg_staff_multi ).
- premptyclasslist.pl - older custom classlist report
pointed at the preregistration student table. This should be replaced
with the custom classlist report being able to accept table input.
- preregempty.pl - simple script to delete prereg student
table (with confirmation).
- preupdateroom.pl - update the normal student table grade
and homeroom values from the student preset table, which basically
carries the homeroom and grade.
- prexfer.pl - selectively move preregistered students into
the normal student table. ( prereg to student ).
- promote.pl - empty the preset table. Then add new records
with incremented grades into preset. Also include students in prereg,
without grade change.
- prstudview.pl - an old prereg (student) viewer. Should be
updated or use new student viewer pointed at this table.
- prstudview1.pl - a preset table viewer to show homeroom
and grade assigned.
This system includes the 2 tables above (staff, and staff_multi)
linked with the common userid field (which also links the staff to
other tables such as the subject table in the report card system, etc.
This system is supported by the meta system and both editing and reports
are generated using templates.
The scripts, located in /cgi/staff, are used to add, edit, and report on
staffs. The staff report is template based and can load multiple formats.
The staff management system has the following scripts in cgi/staff:
- staffadd.pl - Add new staff members.
- staffdel.pl - Delete existing staff members; called by staffdeled.pl
- staffdeled.pl - Edit/Delete Staff Members
- staffed.pl - Edit staff members; called by staffdeled.pl
- staffrpt.pl - Staff report, based on various templates; pdf output.
- staffview.pl - Simple staff viewer with most common fields.
The dates table is used to store dates for the school
year. They indicate days (Monday - Friday) that school is not in
session due to statutory holidays, school holidays, inservice,
etc. This is required to correctly calculate student attendance since
OA only tracks days that students are away, not present.
These date scripts are located in /cgi/eoy and include:
- dateadd.pl - add dates to the school year.
- dated.pl - edit school dates.
- datedel.pl - delete school dates; called by datedeled.pl
- datedelall.pl - delete all school dates. (ie. school dates)
- datedeled.pl - edit/delete schoold dates.
- dateview.pl - view school dates (and other date
configuration in conf files.
The metadata system allows us to provide metadata (data about data) about
values in fields of tables. Currently this supports the student tables
(student, studentwd, prereg), the staff tables ( staff, staff_multi),
and also the student_inac tables (used in Canada for First Nations
schools).

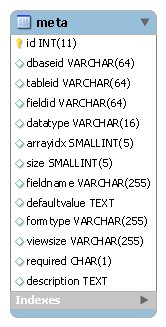

The meta table provides information about each field in those tables
including, text name (supporting translation), default values, type of
edit form used ( plus other edit characteristics ) and whether a
required field during entry.
There is a libmeta library function in the lib folder. It provides the
metaInputField function to provide entry form values 'around' the
staff or student fields (identified by the fieldid).
The entry method in general is:
- Read the template into a text variable. Templates are stored in
the templates folder at the same level as the cgi, etc, admin folders
and have a filename .tpl extension.
- Read in the field values for the table of interest from the meta
table. This includes the fieldid and the fieldname (which may be a
translated value updated by the translation system). These are loaded
into a hash to make it easy to lookup a fieldname based on a fieldid
in the template.
- Replace fieldid's in the template text (identified by *field*
values where 'field' is the fieldid ) with the fieldnames loaded from
meta table.
- Next load record values (if any) into a hash indexed also by
fieldid (which is the name of the field in the table). Then use a
regex expression to search the template for any fieldid of the form
@field@ and replace those values with the value from the staff
or student table. This will allow us to display the names and values
of a particular student or staff record.
- If there is a desire to edit values, then use the
metaInputField function in a form. Use the same search and replace
method to return form elements (with embedded value) into the form text.
If this is a addition operation rather than an edit operation, there
are no existing values. As a result, there is no need have a read
values step and nothing is passed to metaInputField for the value.
Here is some example code from the inacadd.pl script for an edit operation.
A display only operation does not require the metaInputField loop.
# Read in Template
unless (open (FH,''<../../template/inac.tpl'')) {
print $lex{'Unable to open template file:'},''$!\n'';
die $lex{'Unable to open template file:'},''$!\n'';
}
my $formtext;
{ local $/; $formtext = <FH>; close FH;}
# Get fieldnames from meta, store in hash.
my $sth = $dbh->prepare(``select fieldid, fieldname from meta where tableid = ?'');
$sth->execute( 'student_inac' );
if ( $DBI::errstr ) { print $DBI::errstr; die $DBI::errstr; }
my %fieldnames = ();
while ( my ( $fieldid, $fieldname ) = $sth->fetchrow ) {
$fieldnames{$fieldid} = $fieldname;
}
# Now replace <*fieldid*> with fieldnames; this gives us the text;
$formtext =~ s{\<\*(.*?)\*\>}
{ exists( $fieldnames{$1} )
? $fieldnames{$1}
: $1
}gsex;
# Formtext is now ready for multiple use; only contains <@fieldid@> values.
# now parse for form entry replacement elements <@name@>
# Extract fields from template
my @fields = ();
while ( $formtext =~ m/\<\@(.*)\@\>/g ){
push @fields, $1;
}
# Get their record, if any.
$sth->execute( $studnum );
if ( $DBI::errstr ) { print $DBI::errstr; die $DBI::errstr; }
my $recref = $sth->fetchrow_hashref;
my %fieldvals = %{ $recref };
# get replacement form element values for fields
foreach my $fieldid ( @fields ) {
$values{$fieldid} = metaInputField('student_inac',
$fieldid, $fieldvals{$fieldid}, $dbh, $studnum );
}
# now put form elements (including values) back into $formtext variable...
$formtext =~ s{ \<\@(.*?)\@\> }
{ exists($values{$1})
? $values{$1}
: ``$values{$1}-$1''
}gsex;
The metadata system has the following scripts in cgi/meta:
- metaedit.pl - edit metadata for student and staff.
- metaupdate.pl - synchronize meta table values with
underlying data (ie. student, staff) tables.

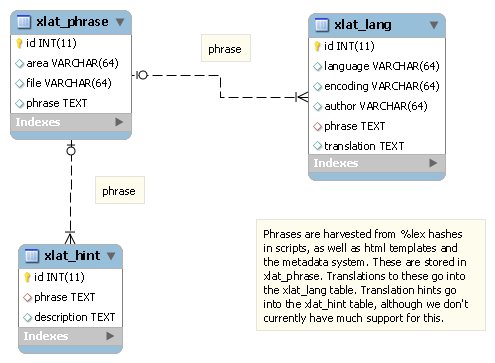

The translation system has the following scripts in cgi/xlat:
- fixCaseDup.pl - finds phrases with duplication, differing
only in case. Doesn't really fix anything, just displays. Not linked
to translation on eoy page.
- xlatRemoveDup.pl - this script does remove duplicate
phrases. Not linked to eoy page.
- xlatExportPO.pl - export phrases into a .PO file. The
start page gives a choice of phrases and translation. These come
out of the xlat_lang table.
- xlatImportPO.pl - upload a .po file containing phrase
translations into the xlat_lang table (translation) and also
xlat_phrase if required (with options).
- xlatExtract.pl - read scripts, html templates, and
metadata (table) and generate a list of all phrases from the lex
hashes. These are placed in the xlat_phrase table.
- xlatInsert.pl - will insert translations (from xlat_lang
table) into the lex hashes in the scripts, rewrite the html pages from
the html templates (with translation), and also update the meta table
fieldname values.
- xlatPhraseView.pl - view phrases and translations from the
xlat_lang and xlat_phrase table.
- xlatTransEdit.pl - Edit translation phrases.
The external user management system has the following scripts in cgi/usermanage:
- addexternal.pl - copy user information (staff and student)
onto an external server. Cron scripts on the external server will
compare this file with existing users and add any missing ones.
- resetexternal.pl - copy a reset file to the external
server to change password or lock the account (or the reverse).
- gdocview.pl - View Google Users in your educational
domain, and compares them to existing local records.
- googleupdate.pl - Manage Student and Staff accounts on
Google domain.
- googleview.pl - Simpler Google Viewer than gdocview. Only
shows name.
The LDAP scripts manage users on an external ldap server.
The ldap area has the following scripts in cgi/ldap:
The SIRS3 (another SIS) import system has the following scripts in
cgi/dbfimport:
- importstudentdbf.pl - Import students from SIRS3 dbf
upload.
- importhomelogicpassword.pl - Import the passwords (stored
in homelogic module) of SIRS.
This is an additional table and scripts addon to the student
demographics system. It provides the data required to print INAC
reports such as the nominal roll.
The inac area has the following scripts in cgi/inac:
- canada.jpg - canadian flag image - inac report
- fip-eng.jpg - image for inac report
- inacadd.pl - add inac fields to the new student_inac
table. Additional fields are required for the inac nominal roll forms.
- inacdeled.pl - normal edit/delete script for these values.
- rptinacconf.pl - inac confirmation report (html).
- rptinacroll.pl - inac nominal roll report (pdf).
The Gradebook uses two tables:
- gbscore - holds individual student scores for a particular
test / assessment item.
- gbtest - holds information about each test/assessment item
for all subjects.
Next: Password Policy
Up: Open Administration for Schools
Previous: Introduction
2010-07-27
